Fuel Filter Paper

Short Description:

A fuel filter is responsible for purifying fuel and protecting the engine’s injection system, and the fuel filter paper is the key to its performance. Engines — especially diesel engines with high-pressure common-rail systems — demand extremely clean fuel: particulate impurities accelerate wear on the injection pump and injectors, while water causes corrosion, lubrication failure and even injection faults. Fuel filter paper traps particulate impurities through its high-precision fiber structure and separates water from fuel through hydrophobic/coalescing properties, while also needing resistance to fuel chemicals, temperature changes and sufficient dirt-holding capacity. The filter paper’s filtration precision, water-separation ability, media resistance and service life directly determine fuel cleanliness, injection system life, combustion efficiency and emission levels — high-quality fuel filter paper is a vital guarantee of efficient, reliable and long-lasting engine operation.


Product Detail

Product Tags

Product Details

♦ Long Life Working
♦ Three layer, Phenolic paper base+BPT Melt Blown+PP
♦ Curing

Specification

Item Weight

(g/m2)
Thickness (μm) Corrugation/Flat (μm) Burst Strength

(Kpa)
Air Permeability (L/m2.s) Stiffness

(m.Nm)
Phenolic/Acrylic Remark
SD SDC SD SDC SD SDC
1 145 139 800 300 180 250 110 5 6 Phenolic Singal layer
2 175 166 800 250 200 250 260 5 6 Phenolic Singal layer
6 240 230 950 750 250 350 60 10 12 Phenolic Three layers
7 260 250 950 0 280 300 20 13 15 Phenolic Three layers

Packing Details

Heavy Duty Air Filter Paper.(Inner, Safety, Secondary Filter) (1)

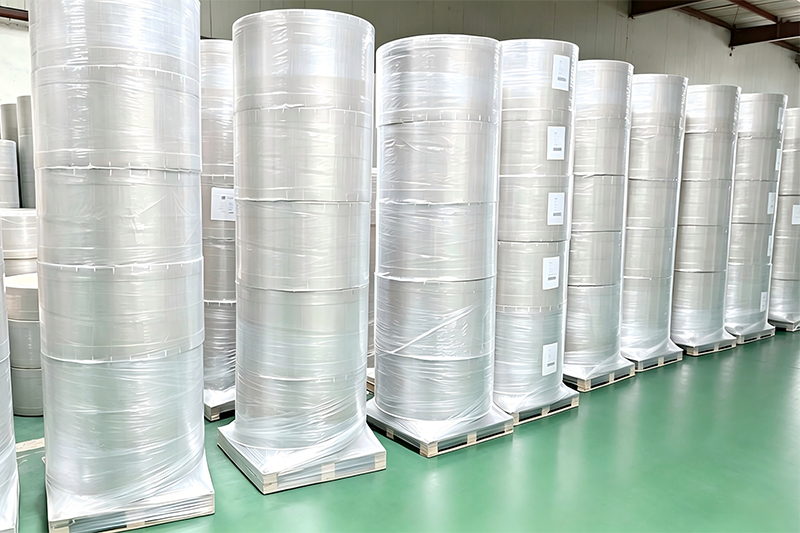

Packing-0

Applications

Heavy Duty Air Filter Paper (8)
